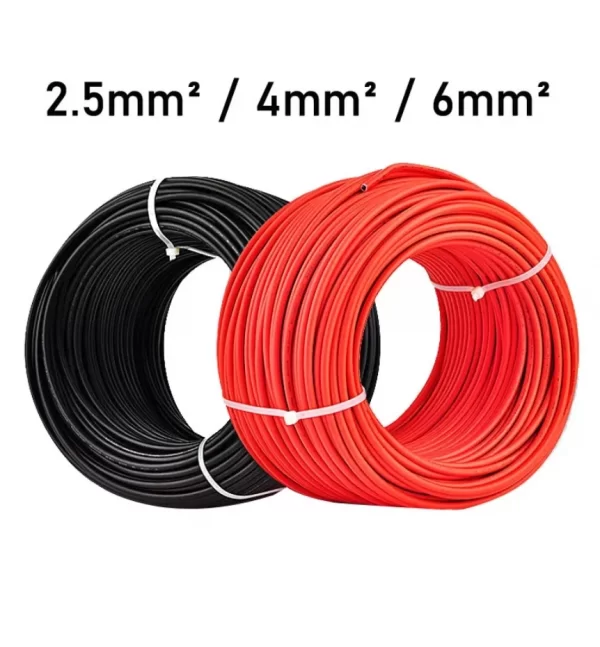

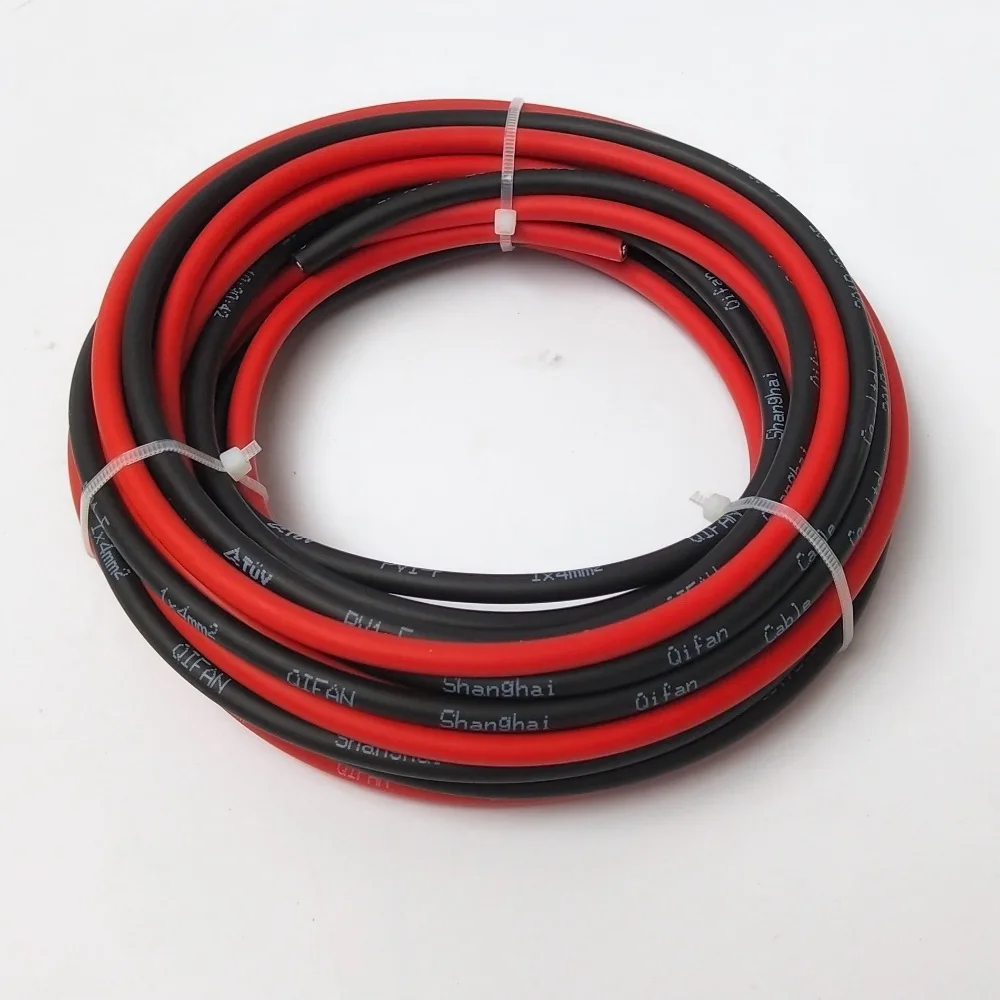

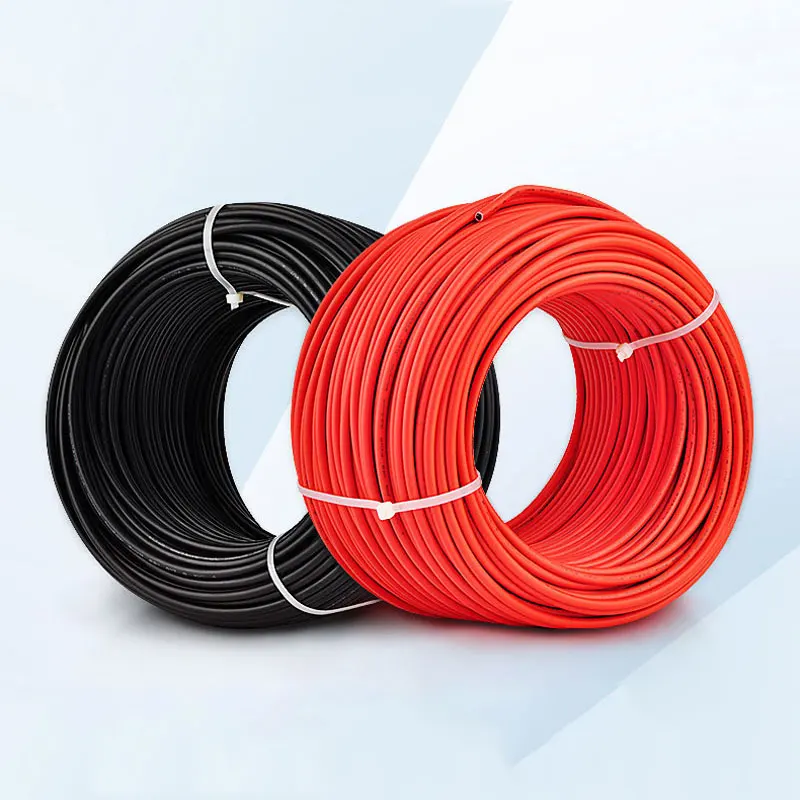

Solar PV Cable Wire 14/12/10/8 AWG Red & Black Tinned Copper Double Sheathed Wire for Solar Photovoltaic System
specifications:2.5/4/6/10mm²
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black
Feature: Double insulation cover

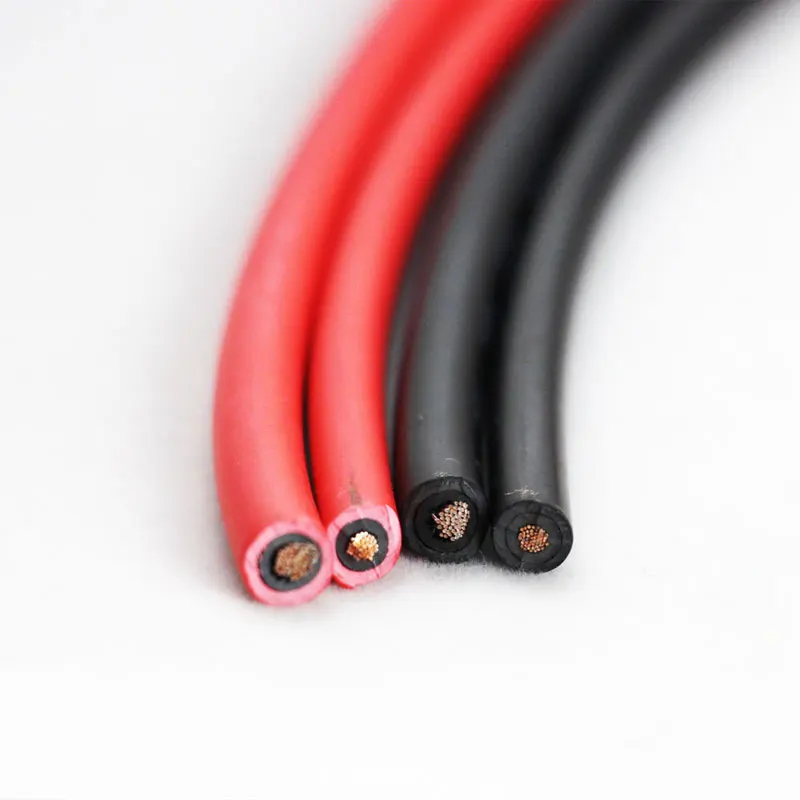

Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 ℃ -90 ℃)
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction
Cable size range : 10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)
1 Meters (3.28ft) / 2 Meters (6.56ft) / 3 Meters (9.84ft) / 5 Meters (16.4ft) / 10 Meters (32.8ft)
Solar Cable Structure :
| Nominal Cross Soctional Area of the Conductor (mm2) | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | |||
|
number of wire in conductor: |
35 | 56 | 84 | 77 | 119 | 189 | 266 | |||
|
diameter of wires in conductor(mm): |
0.194± 0.006 | 0.300± 0.006 | 0.300± 0.006 | 0.400± 0.006 | 0.400± 0.006 | 0.400± 0.006 | 0.400± 0.006 | |||
|
min.wall thickness of insulation (mm): |
0.64 | 0.64 | 0.65 | 0.65 | 0.66 | 0.66 | 0.66 | |||
| min.wall thickness of Sheath (mm): | 0.66 | 0.68 | 0.88 | 0.7 | 0.72 | 0.75 | 0.78 | |||
TECHNICAL PARAMETERS
|
Model
|
Safe current(A)
|
Core diameter (mm)
|
Conductor cross section(mm²)
|
|
16 AWG
|
19
|
30*0.25
|
1.5
|
|
14 AWG
|
28
|
35*0.3
|
2.5
|
|
12 AWG
|
36
|
56*0.3
|
4
|
|
10 AWG
|
48
|
84*0.3
|
6
|
|
8 AWG
|
65
|
142*0.3
|
10
|
|
6 AWG
|
95
|
227*0.3
|
16
|
|
4 AWG
|
120
|
190*0.4
|
25
|
Conductor:Tin-plated high-purity oxygen-free copper, electrical performance and structure meet the requirements of ASTMB33 or ASTMB172
Insulation:Thermosetting environmental protection insulation material, generally black
Sheath:Thermosetting radiation-crosslinked polyvinyl chloride environmental protection UV-resistant sheath material
