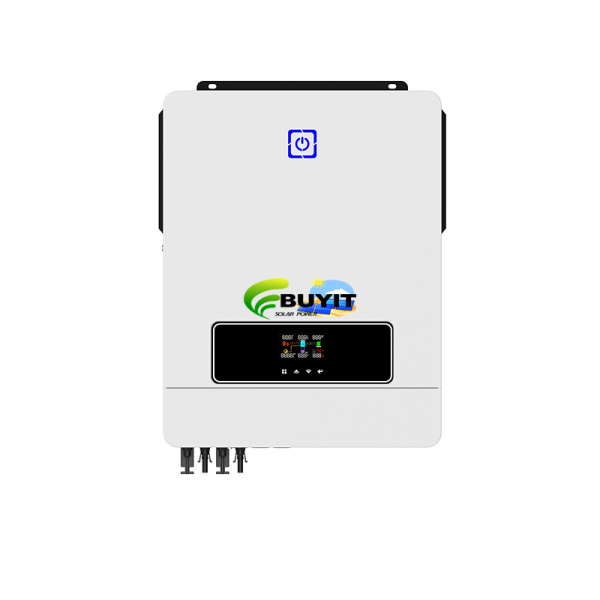

8.2KW/10.2KW OFF+Grid tie Hybrid solar inverter
Main features：
▶Pure sine wave solar inverter(on and off grid)
▶Output power factor 1.0
▶WIFI&GPRS available for IOS and Android
▶Inverter running without battery
▶One-click restoration to factory settings
▶Built-in lithium battery automatic activation
▶Built-in 160A
▶High pv input voltage range(90-500VDC)
▶Built-in anti-dusk kit for harsh environment
▶Smart battery charge design to optimize battery life
▶Dual output
▶Touch buttom
|
Model No. |
BUYIT MAX- 8.2KW |
| Phase | 1-phase |
| Maximum PV Input power | 8200W |
| Rated Output power | 8200VA/8200W |
| Maximum solar charging current | 160A |
| Grid-tie operation | |
| PV INPUT(DC) | |
| Nominal DC Volt/Max DC Voltage | 360vdc/500vdc |
| start-up voltage/initial feeding voltage | 90vdc/120vdc |
| MPPT voltage range | 90-450vdc |
| no.of mppr tracher/max,input current | 1/27a |
| Grid Output(AC) | |
| Nominal output Voltage | 200/230/240VAC |
| Output Voltage Range | 195-253V |
| Nominal Output Current | 35.6A |
| Power Factor | >0.99 |
| Feed-in Grid frequency range | 49-51±1Hz |
| Efficiency | |
| Max. Conversion Efficiency (DC/AC) | 98% |
| TWO Load output power | |
| Full load | 8200W |
| maximum main load | 8200W |
| maximum second load（battery moldel） | 2733W |
| main load cut off Voltage | 44VDC |
| main load returnVoltage | 48VDC |
| AC Input (AC) | |
| AC Start-up Voltage/Auto Restart Volt. | 120 VAC-140 VAC/180 VAC |
| Acceptable Input Voltage Range | 90-280 VACor 170-280 VAC |
| Max. AC Input Current | 40A |
| Nominal operating frequency | 50/60Hz |
| surge power | 16400W |
| PV INPUT(DC) | |
| Maximum DC Voltage | 500VDC |
| MPPT voltage range | 90VDC-450VDC |
| no.of mppt tracher/max,input current | 1/27a |
| Battery Mode Output (AC) | |
| Nominal Output Current | 48VDC |
| Wave form | Pure sine wave |
| Efficiency(DC to AC) | 94% |
| Battery & Charger | |
| Battery Type Supported | Lead Acid /VRLA/AGM/Deep Cycle/Gel/Flooded/Tubular/Lithium-Ion |
| Nominal Battery Voltage | 120A |
| Max AC Charge Current | 100A |
| Max Total Charge Current | 150A |
| Physical | |
| Products Dimension,D X W X H (mm) | 500*390*130 |
| Product Net Weight(kgs) | 12 |
| Communication Interface | RS232,RS485,WIFI |
| Operating Environment | |
| Operating temperature | 0°Cto 50°C |
| Storage temperature | -15°C to 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
