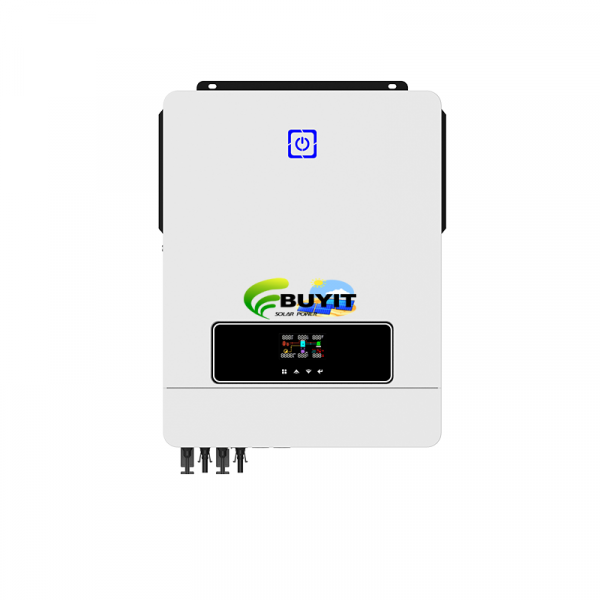

8.2KW 10.2KW 48V Off+On Hybrid Solar Inverter 160A MPPT Dual AC Output

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. Features of 48VDC solar power inverter： 1.Pure sine wave solar inverter 2.Output power factor 1.0 3.Wifi&GPRS available for IOS and android 4.Dual MPPT input, dual AC output 5.Built-in 180A MPPT solar charge controller 6.High PV input voltage range(120~500VDC) 7.Built anti-dusk kit for harsh environment 8.Smart battery charger design for optimized battery life 9.RGB automatically switches with the working mode of the machine 10. On/off-grid,Touch screen display 11.Inverter running without battery

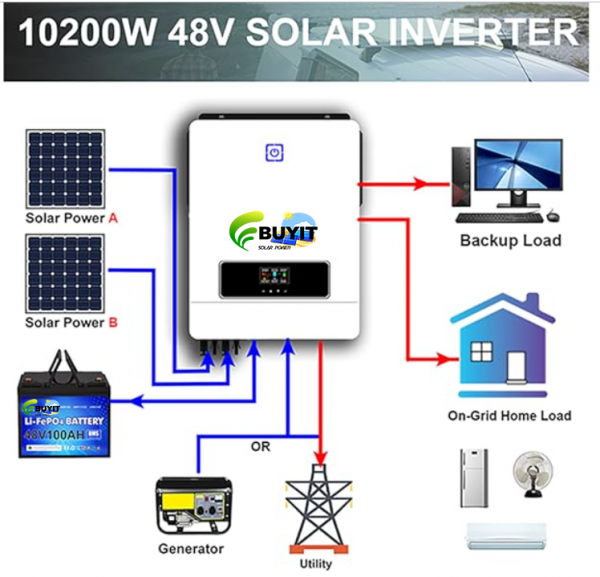

Basic System Architecture: The following illustration shows the basic application for this inverter/charger.

It also includes the following devices to have a complete running system: 1.Generator or Utility. 2.PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.

Four modes can be choose when charging battery:

Four modes can be choose when charging battery:

Utility first: Utility will charge battery as first priority source, then Solar Power. Solar first: Solar will charge battery as first priority source, then Utility Power. Solar and Utility(default): Solar Power and Utility power will charge battery at the same time. Only Solar: Solar Energy as the only source charge battery.

Three Output modes can be choose：

Three Output modes can be choose：

Utility first (default): Utility will provide power to theloads as first priority, Then Solar Power, battery Power Solar first: Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time，then battery power. SBU Priority: Solar energy provides power tothe loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time. BUYIT can provide you with a battery package. The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult us for help.

Off grid (default): Inverter operates only in off-gridmode. Solar energy providespowertothe loadsas first priority and chargingsecond. Hybrid: Inverter operates hybrid mode. Solarenergy provides power to the loads asfirst priority and charging secondExcess energy feed to grid.
