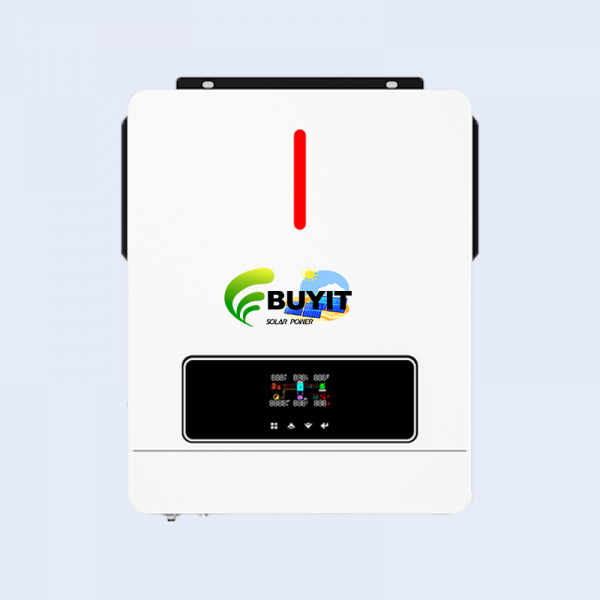

3600W 6200W Grid Tie Hybrid Solar Inverter Dual Ouput Photovoltaic Inverter

Feature

1.Pure Sine Wave Solar Inverter

2.Max 120A MPPT Solar Charger

3.Max 500VDC PV Input

4. Two Loads Output

5.High PV input voltage range(120~450VDC)

6.Output power factor 1.0

7.Real Hybrid Solar inverter for 24V/48V system

8.Wifi Module for easily connection

9.Efficiency work with or without battery

10.Bundled monitoring & setting software

11.Supports 50hz or 60hz (program adjustable)

12.Able to use ac grid or generator power

13.Built-in anti-dusk kit for harsh environment

14.Optional DC output for DC fan, LED bulb,router and so on

Note:

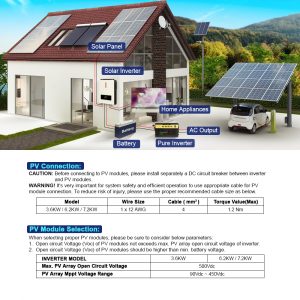

This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 150V for the inverter to work normally, if with external battery 120V is working.

DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER

Advantage:

Dual AC output: under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.
