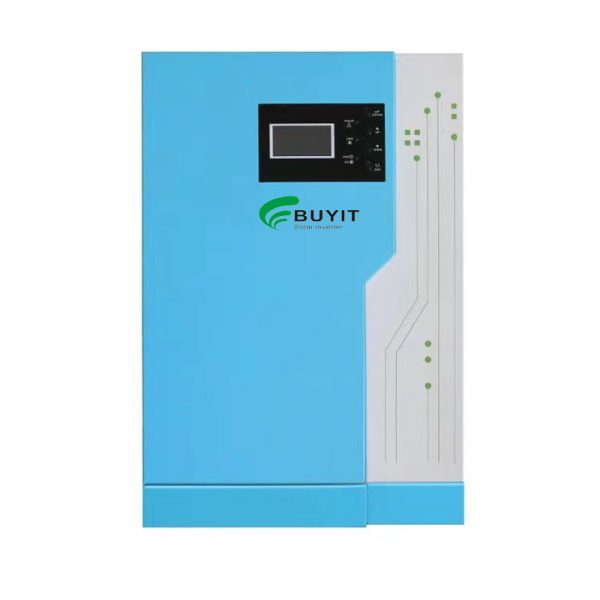

3.5KW 24V MPPT 100A OFF GRID INVERTER

BUYIT VM II PLUS 3.5KW 24V 100A MPPT Built-in Run Without Battery Solar Inverter
Pure sine wave solar inverter
Output power factor 1.0
WIFI  available for IOS and android
Inverter running without battery
Built-in 100A MPPT solar charger
High PV input voltage range(120~500VDC)
Built-in anti-dusk kit for harsh environment
Smart battery charge design to optimize battery life

Model BUYIT VM-II-3500W-PLUS BUYIT VM-II-5500W-PLUS
RATED POWER 3500VA/3500W 5500VA/5500W
INPUT
Voltage 230VAC
Selectable Voltage Range 170~280VAC(For Personal Computer)
90~280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode) 230VAC±5%
Surge Power 7000VA 11000VA
Efficiency(Peak)PV to INV. 97%
Efficiency(Peak)Battery to INV. 94%
Transfer Time 10 ms(For Personal Computers);

20 ms(For Home Appliances)

BATTERY & AC CHARGER
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 33VDC 63VDC
Maximum Charge Current 100A 100A
SOLAR CHARGE
Maximum PV Array Power 5000W 6000W
MPPT Range at Operating Voltage 120~450VDC
Maximum PV Array Open Circuit Voltage 500VDC
Maximum Charging Current 100A 100A
Maximum Efficiency 98%
PHYSICAL
Dimension, D*W*H(mm) 100*300*440
Net Weight(kgs) 11 12
Communication Interface Removable LCD/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
HUMIDITY 5% to 95% Relative Humidity(Non~Condensing)
Operating Temperature 0℃~55℃
Storage Temperature -15℃~60℃

This is multi-function inverter/charger ,combining functions of inverter,MPPT solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications

Featurs:

  • Pure sine wave inverter
  • 6.0 KW 100A MPPT
  • Solar charger of the maximum  charging current is 100A
  • 120-500V wide PV input
  • Can used for Lithium battery /lead-acid battery/ Gel battery
  • Can work with and without battery
  • Generate power from PV directly to supply load, even without battery
    PV to AC efficiency is much higher

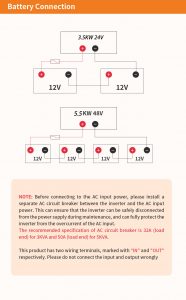

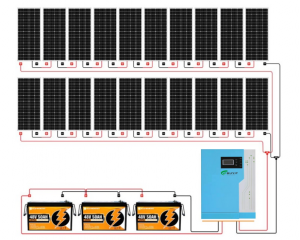

3.5kw solar inverter with panels number connectsolar inverter with batteries connectionsolar inverter packing details and certification

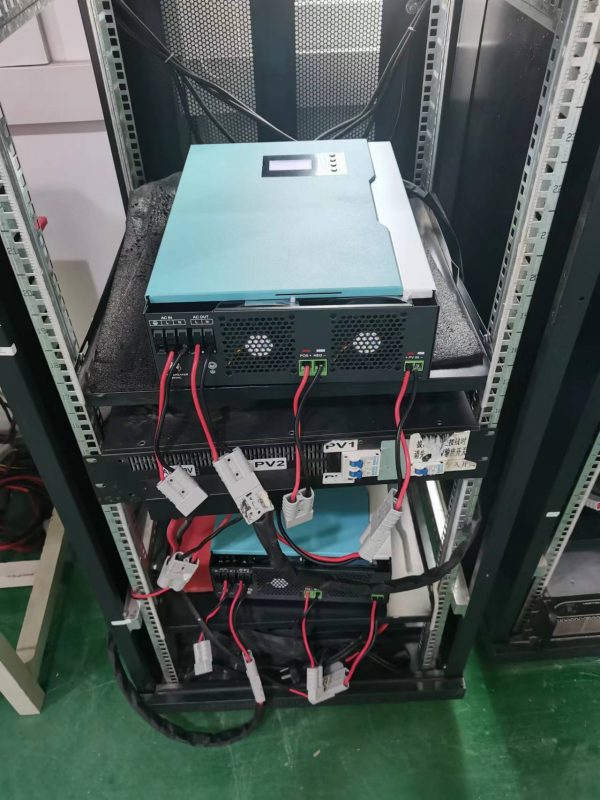

solar inverter with panels install

Weight 12 kg
