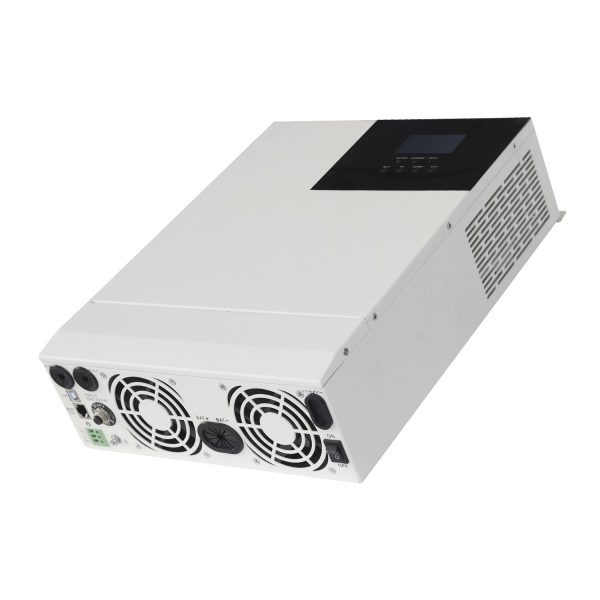

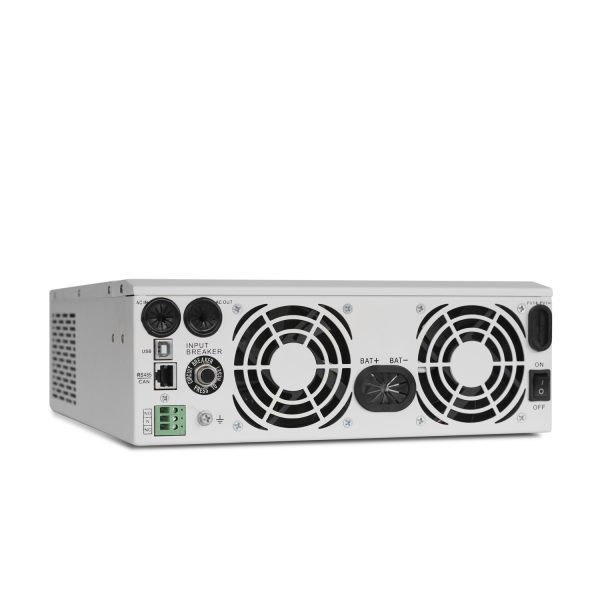

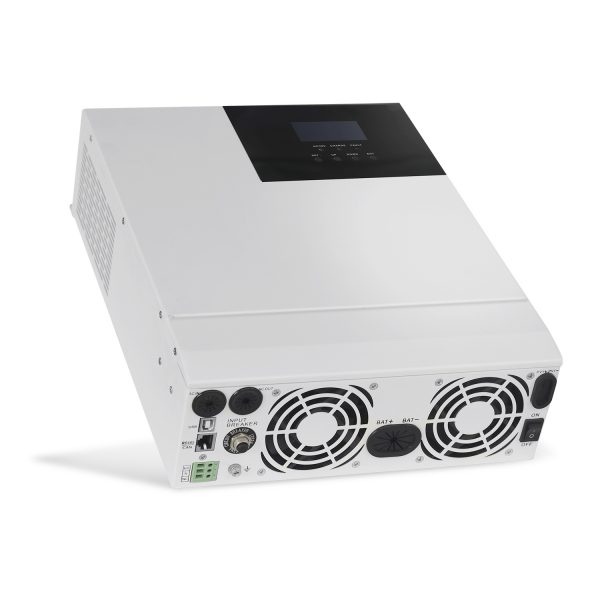

110/120VAC 3KW 24V MPPT Off Grid Solar inverter

All in one solar charger inverter

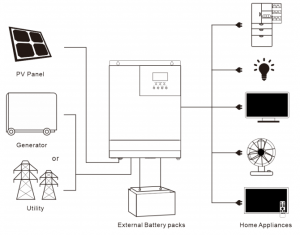

HF series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means

charging energy storage and AC sine wave output. Thanks to DSP control and advanced control

algorithm, it has high response speed, high reliability and high industrial standard. Four charging modes

are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two

output modes are available, i.e. Inverter and Mains, to meet different application requirements.

The solar charging module applies the latest optimized MPPT technology to quickly track the maximum

power point of the PV array in any environment and obtain the maximum energy of the solar panel in

real time.



Features:

1. Full digital voltage and current double closed loop control, advanced SPWM technology, output

of pure sine wave.

2. Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid

charging.

4. Advanced MPPT technology with an efficiency of 99.9%.

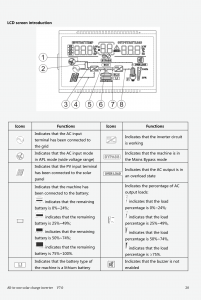

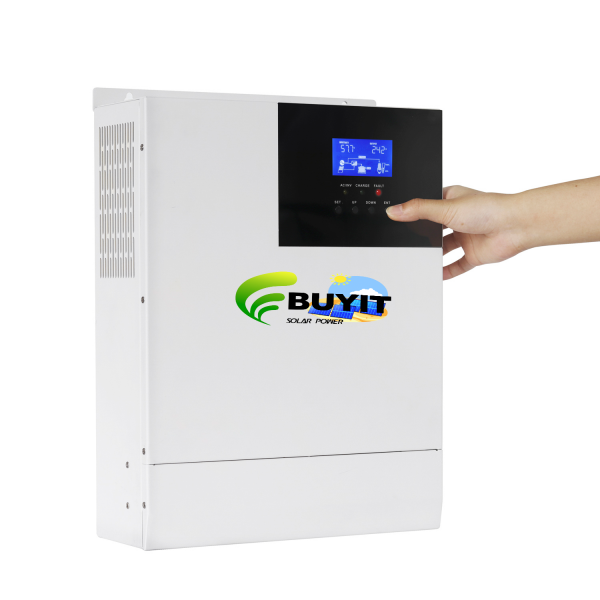

5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and

operating status.

6. ON/OFF rocker switch for AC output control.
7. Power saving mode available to reduce no-load loss.
8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium

battery.

10. 360 ° all-round protection with a number of protection functions.
11. Complete protections, including short circuit protection, over voltage and under voltage

protection, overload protection, reverse protection, etc.
